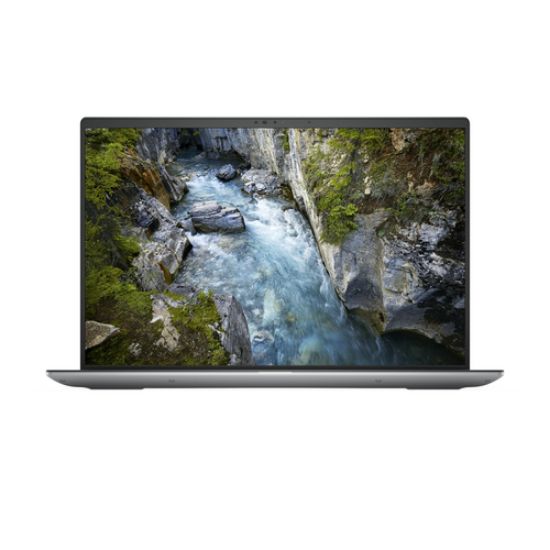

Dell Precision 5690 MOBILE WORKSTATION C

Manufacturer: Dell

Manufacturer part number: D3G2V

Availability: Out of stock

Price: $2,269.20

Qty:

Delivery date: 5 days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

Dell Precision 5690 MOBILE WORKSTATION Core™ Ultra 9 185H 1TB SSD 32GB 16" (1920×1080) WIN11 Pro IR Webcam NVIDIA® RTX 2000 ADA US Backlit Keyboard FP Reader

Products specifications

Attribute name	Attribute value
Warranty	1 Year Manufacturer Warranty
Packaging	Retail Box
Visual Condition	New
Condition	New Factory Sealed
Just Launched	Yes
Processor
Processor base power	45
Maximum turbo power	115
Processor cache type	Smart Cache
Processor cache	24
Low Power Efficient-core Base Frequency	1000
Efficient-core base frequency	1.8
Performance-core base frequency	2.3
Low Power Efficient-core Max Turbo Frequency	2.5
Efficient-core Max Turbo Frequency	3.8
Performance-core Max Turbo Frequency	5.1
Low Power Efficient-cores	2
Efficient cores	8
Performance cores	6
Processor boost frequency	5.1
Processor threads	22
Processor model	185H
Processor generation	Intel® Core™ Ultra (Series 1)
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Memory
Memory channels	Dual-channel
Memory data transfer rate	7467
Maximum internal memory	32
Memory form factor	On-board
Internal memory type	LPDDR5x-SDRAM
Internal memory	32
Display
Contrast ratio (typical)	1300:1
Maximum refresh rate	60
RGB colour space	DCI-P3
Colour gamut	100
Pixel density	142
Display brightness	500
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	Full HD+
Touchscreen	No
Display resolution	1920 x 1200
Display diagonal	40.6
Audio
Built-in microphone	Yes
Number of microphones	2
Speakers manufacturer	Waves
Number of built-in speakers	4
Ports & interfaces
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI version	2.1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	0
Weight & dimensions
Height (rear)	2.22
Height (front)	2.05
Depth	240.3
Width	353.7
Weight	2.03
Power
USB Power Delivery (USB PD)	Yes
AC adapter input voltage	100 - 240
AC adapter frequency	50 - 60
AC adapter power	165
Operational conditions
Non-operating vibration	1.3
Operating vibration	0.66
Non-operating shock	160
Operating shock	110
Non-operating altitude	-15.2 - 10668
Operating altitude	-15.2 - 3048
Storage relative humidity (H-H)	0 - 95
Operating relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-40 - 65
Operating temperature (T-T)	0 - 35
Keyboard
Numeric keypad	No
Keyboard backlit	Yes
Pointing device	Touchpad
Network
Bluetooth	Yes
WLAN controller model	Intel Wi-Fi 7 BE200
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Mobile network connection	No
Storage
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	1
Number of SSDs installed	1
Total SSDs capacity	1
Storage media	SSD
Total storage capacity	1
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	Yes
Cable lock slot type	Wedge
Cable lock slot	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Camera
Infrared (IR) camera	Yes
Video capturing speed	30
Front camera resolution	1920 x 1080
Front camera HD type	Full HD
Front camera resolution (numeric)	2.07
Front camera	Yes
Packaging content
Cables included	AC
Battery
Battery charge indicator	Yes
Battery weight	363
Fast charging	Yes
Battery recharge time	3
Battery capacity	99.5
Battery voltage	11.55
Number of battery cells	6
Battery technology	Lithium-Ion (Li-Ion)
Design
Market positioning	Business
Form factor	Clamshell
Product colour	Grey
Product type	Mobile workstation
Graphics
On-board graphics card model	Intel Arc Graphics
On-board graphics card family	Intel Arc Graphics
On-board GPU manufacturer	Intel
Discrete graphics memory type	GDDR6
Discrete graphics card memory	8
Discrete graphics card model	NVIDIA RTX 2000 Ada
Discrete graphics card	Yes
On-board graphics card	Yes
Performance
Ambient light sensor	Yes
Accelerometer	Yes
Proximity sensor	Yes
Gyroscope	Yes
Hall sensor	Yes
Neural processor unit (NPU)
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Windows Studio effects support	Yes
Sparsity support	Yes
Maximum frequency NPU	1.4
Neural processor unit (NPU)	Intel AI Boost
